Cottage/Craftsman Garage-Apartment Plan
1 Bedroom, 1 Bath, 3-Car, 2 Story

CHP-GAR-525-AD
Cottage/Craftsman Garage-Apartment Plan
1 Bedroom, 1 Bath, 3-Car, 2 Story

CHP-GAR-525-AD<br />Cottage/Craftsman Garage-Apartment Plan<br />1 Bedroom, 1 Bath, 3-Car, 2 Story
Item# gar525ad-cottage-craftsman-garage-apt-plan
$650.00
Option:

GAR-525 Floor Plan

CHP-GAR-525 Plan Description and Details

Cottage/Craftsman styling defines this compact, 3-car garage/apartment plan. The garage level features ample storage and car space. The stairwell access to the apartment is completely enclosed and under roof for maximum convenience and protection from the elements. The compact apartment plan features 1 bedroom, 1 bath, and lots of attic storage. The fully equipped kitchen is open to a family dining. This comfortable, compact garage-apartment plan is ideal for guests, in-laws or as living quarters while building the main house. Available options and pricing: See below.

Other Garage/Apartment Plans:

GAR-525 Upper Level Apartment Plan
ENLARGED FLOOR PLAN BELOW 		GAR-525 Reverse Upper Level Apartment Plan
REVERSE FLOOR PLAN BELOW 		GAR-525 3-d views
3-D IMAGES FOR GAR-525
WHAT'S IN A PLAN PCKG
COST TO BUILD:
$(-)


FEATURES

  • Ideal For Building in Stages
  • Open Kitchen/Family Area
  • Large Private Bedroom
  • Large Bath with Shower
  • Ample Storage Space
  • 3-Car Garage w/Storage
  • Cost-Saving Construction Design

STYLE/CATEGORY

  • Craftsman Style
  • Country Style
  • Transitional Style
  • Adaptable Garage/Apartment Plan
  • Build in Stages Small House Plan
  • Small Budget Apartment/Garage Plan
  • Economical Construction
  • Gable Roof Style


ROOM SIZES AND PLAN SPECIFICATIONS:



ROOM SIZES (approx)
Kitchen/Family 15'-7"x11'-10"
Bedroom 15'-7"x11'-0"
BR Closet 4'-2"x7'-2"
Bath 10'-6"x8'-5"
Entry Closet 4'-2"x7'-0"
Stair Closet 4'-2"x3'-11"
Garage Bay 1 & 2 27'-1"x27'-1"
Garage Bay 3 21'-1"x12'-0"
Overall Garage 27'-1"x39'-1"

GAR-525-AD PLAN SPECS
Square Feet 525
Bedroom/Bath 1/1
Floors 2
Garage 3-Car
Width/Depth/Height 40'x 28'; 22' +/-
Foundation Type Slab
Floor System Wood Joists
Exterior Finish Horizontal Siding
Exterior Walls 2x4 & 2x6 Wood Studs
Roof Pitch/Framing 8/12 & 4/12/Wood Rafters
Roof Framing Wood Rafters
Ceiling Height 8'-Apt & 9'-Garage

    AVAILABLE OPTIONS AND PRICING:

  • 3-Car Repro Set...$650
  • Right Read Reverse 3-Car Repro...$719
  • PDF FILES are $50 less

Repro Plan Package

One set (9 sheets) 24"x36" reproducible master
All Repro Plans include free plan assistance and structural building schedules. See Typical Plan Sheets

To Order a Repro Plan Set

Select the combination of options from the drop-down options menu above and then click "Place Order" (follow instructions for discount on order page).

PDF File

Digital Copy (of Repro) prints-out at 24"x36"
See Typical Plan Sheets for details.
PDF Files are available in a separate section.
Purchase PDF File
Contact us for questions about this plan
If you are unable to connect to the link, manually send email to: info@carolinahomeplans.net
VIEW 3-D IMAGES FOR GAR-525-AD
The layouts, concepts, ideas and all content on this website may not be reproduced, copied or utilized in any form or manner whatsoever for any purpose without the express written permission from Carolina Home Plans, LLC. The information on these web pages is for the sole purpose of reference and is not to be used for construction without purchasing the appropriate construction plan and accompanying License Release Form.

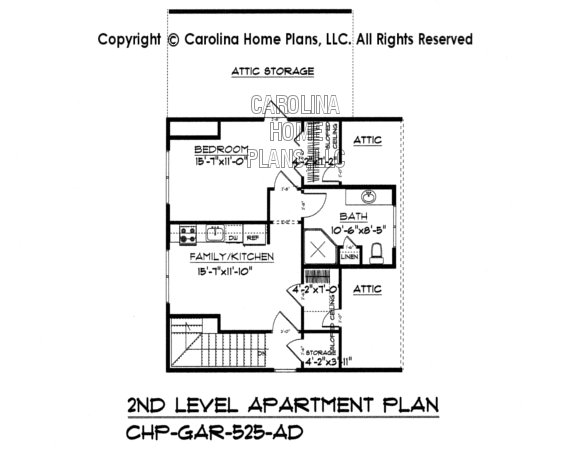

GAR-525 Upper Level Apartment Plan

GAR-525 UPPER LEVEL APARTMENT PLAN

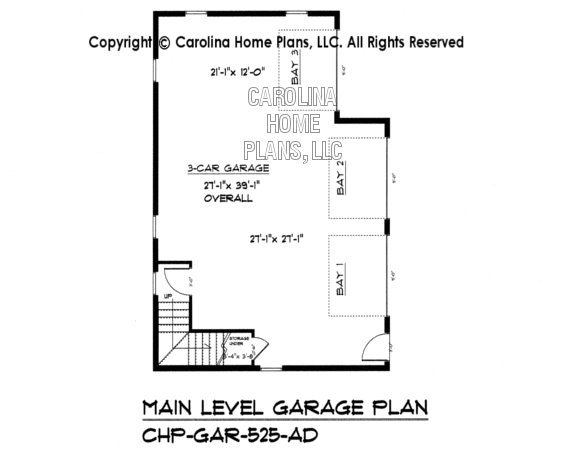

GAR-525 Lower Level Garage Plan

GAR-525 LOWER LEVEL GARAGE PLAN

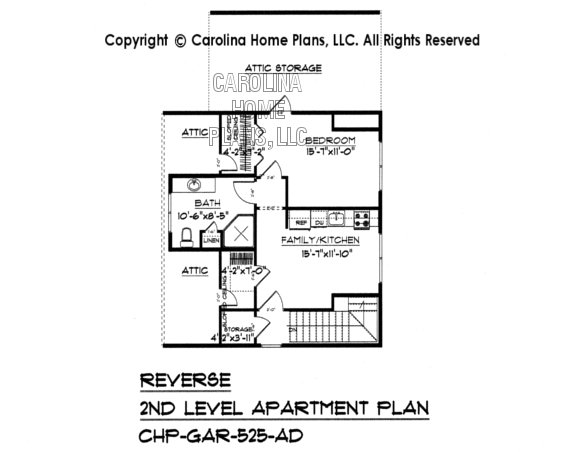

GAR-525 Reverse Upper Level Apartment Plan

GAR-525 UPPER LEVEL APARTMENT PLAN - REVERSE

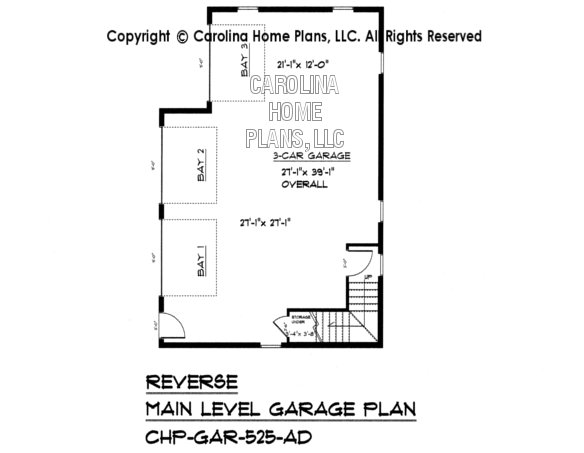

GAR-525 Reverse Lower Level Garage Plan
